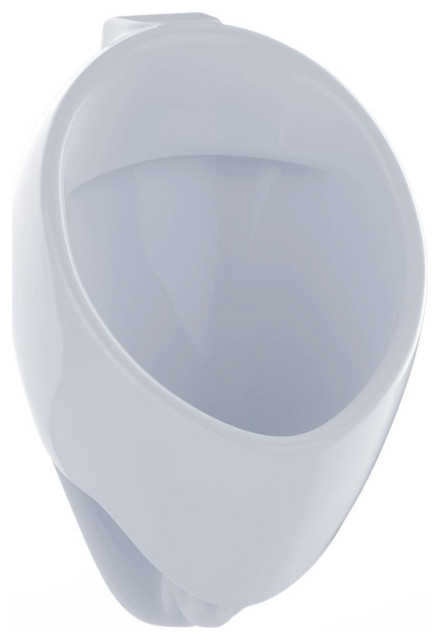

The wall-mounted, ADA compliant, high-efficiency washout urinal delivers a sustainable 0.125GPF/0.47LPF when paired with a 0.125 GPF flushometer valve (not included). Features advanced CeFiONtect ceramic glaze. Will comply with ADA when installed per Section 605 – Urinals of the ADA 2010 Accessible Design Standard with maximum rim height of 17″ and minimum depth of 13-1/2″. Will comply with CSA B651 when installed per Clause 6.2.8 Urinals of the CSA 2012 Accessible Design Standard with maximum rim height of 17″ and minimum depth of 13-1/2″. Ultra-low high efficiency urinals require a system with a minimum 2% slope. Maximum drainage capacity rated at 6.6 gal/min (25 L/min). Adjust angle stop accordingly to prevent overflow. Confirm with local codes and standards for floor drain requirement. TOTO UT105UVG#01 Commercial Urinal Features: Compact urinal with concealed integral trap Washout flush action with 3/4″ top or back spud inlet Complete with low profile dome strainer Optional CeFiONtect ceramic glaze – CeFiONtect glaze prevents debris and mold from sticking to ceramic surfaces, leading to fewer chemicals. TOTO UT105UVG#01 Commercial Urinal Specifications: Water Use: 0.125GPF/0.47LPF Flush System: washout flush action Warranty: 1 Year Limited Warranty Material: Vitreous china Min. Water Pressure: 15 psi (flowing) Height (Urinal Only): 21-3/4″ Width: 12-1/4″ Rim: 14″ Flush valve not included TOTO UT105UVG#01 Commercial Urinal Standards and Compliance Meets and exceeds ASME A112.19.2/CSA B45.1 Certifications: IAPMO(cUPC), State of Massachusetts , City of Los Angeles Code compliance: UPC, IPC, NSPC, NPC Canada, and others Legislative Compliance: California AB715, CALGreen Title 24, California Energy Commission Standards ADA compliant
