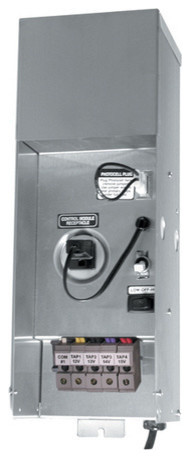

CAST Lighting 300W Journeyman Transformer, Stainless Steel

The CAST Journeymen Series Multi-Tap Transformers include secondary magnetic circuit breakers and can accomodate up to 10 fixture wires. These transformers are rugged and reliable. Features Resin-sealed toroidal core – ensures for the highest possible efficiency Full transformer capacity can be loaded into any single voltage tap Voltage taps of 12, 13, 14, and 15 Volts Extra-large 125 Amp terminal blocks – to accomodate up to (10) #12/2 wires Secondary magentic circuit breakers Stainless steel enclosure Three sizes available: CJ300SSMT: 6.75″ wide, 13″ tall, 5″ depth, 19 lbs. CJ600SSMT: 6.75″ wide, 13″ tall, 5.75″ depth, 26 lbs. CJ900SSMT: 6.75″ wide, 13 tall, 5.75″ depth, 33 lbs. Electrical: Input: 120, 60Hz. Output: 12V, 13V, 14V, & 15V Capacity: 300W, 600W, and 900W Transformer Core: Epoxy resin encapsulated, magnetic toroid, primary thermal protection Secondary Overload Protection: 25 Amp magnetic circuit breaker for the common Hi-Low Switch: adds 1 Volt to all secondary taps Power Cord: 6 ft heavy-duty #16/3 AWG power cord with 3-prong grounded wall plug Secondary Terminal Blocks: 125 Amp rated, extra large Housing Stainless Steel with removable outer plate Listing CUL 1838 Listed, approved for exterior and interior use Warranty Lifetime on core and enclosure, 3-year warranty on electrical components Fully field repairable
