Cast Deck Light, Led Deck Light

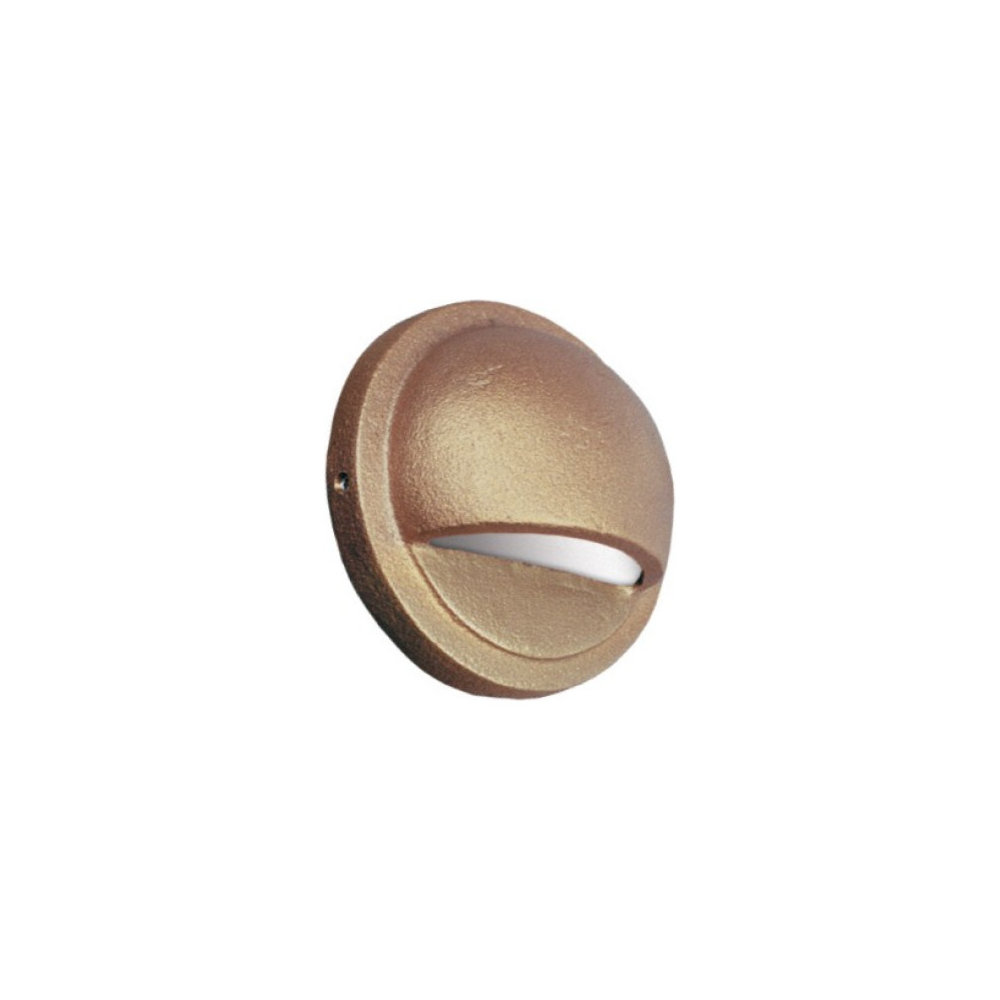

This compact and attractive solid bronze deck light is a durable and reliable fixture for wall and post mounting. Lifetime warranty. Solid bronze hood and base Glare-free illumination Pre-wired with 25?tin-coated No-Ox?marine grade wire High-temp socket Spider Splice?ready Specifications Construction : Solid bronze body and base Orientation : Any Lamp/Bulb : 18W T-5 Wedge Base (included) Dimensions and Weight : Body: 3.75″ diameter x 1.75″ height Weight: 2 lbs. Lamp Specifications : Lamp: 12V, 18W T-5 Xelogen (18W max.) Lamp included Listing : UL 1838 Listed Low Voltage Luminaire for wet locations Construction: Body : Solid Sand-Cast Bronze secured with (2) 303 stainless steel Hex Head screws. Includes (2) stainless steel mounting screws. Socket Assembly : High-temperature socket. Wiring : Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #18/2 lead); socket wire crimped and enviromentally sealed and protected with waterproof shrink tubing and fiberglass sleeve. Packaging : Packed 5/box ; fully assembled Special Wiring Instructions : Since the SCB socket is grounded to the fixture body, care should be taken to maintain correct orientation of paired wire leads. The ridged side of the wire pair should be connected at the Spider Splice to the ridged side of the home run pair. The ridged side of the home run pair should be wired to one of the common terminal blocks at the transformer. An LED version of our Deck Light is also available. Here are the details : This compact and attractive solid bronze deck light features a robust, water-resistant, integrated LED source. It is a durable and reliable fixture for wall and post mounting. Perfectly suited for aggressive coastal environments. Lifetime warranty on housing and hardware – 5 years on LED module. Integrated LED light source with superior moisture protection and thermal management. Brighter than our incandescent version. Fully encapsulated driver Custom-engineered heat sink thermally bonded to solid bronze body Replaceable module Solid bronze hood and base Glare-free illumination Pre-wired with 25?tin-coated No-Ox?marine grade wire Spider Splice?ready Specifications Construction : Solid bronze body and base Orientation : Any Lamp/Bulb : Integrated LED circuit and driver Dimensions and Weight : Body: 3.75″ diameter x 1.75″ height Weight: 2 lbs. Lamp Specifications : LED Light Source : (1) Cree XPE with integrated driver in replaceable module Input Voltage : 10v to 24v AC or DC Input Power : 3.0 Watts; 0.8 pf; Apparent power = 3.8VA @ 12V LED Light output : 120 lm Fixture output : 60 lm Construction: Body : Solid Sand-Cast Bronze secured with (2) 303 stainless steel Hex Head screws. Includes (2) stainless steel mounting screws. Wiring : Tin-coated No-Ox marine-grade wiring (inside fixture and external 25 ft. #18/2 lead); socket wire crimped and environmentally sealed and protected with waterproof shrink tubing and fiberglass sleeve.
