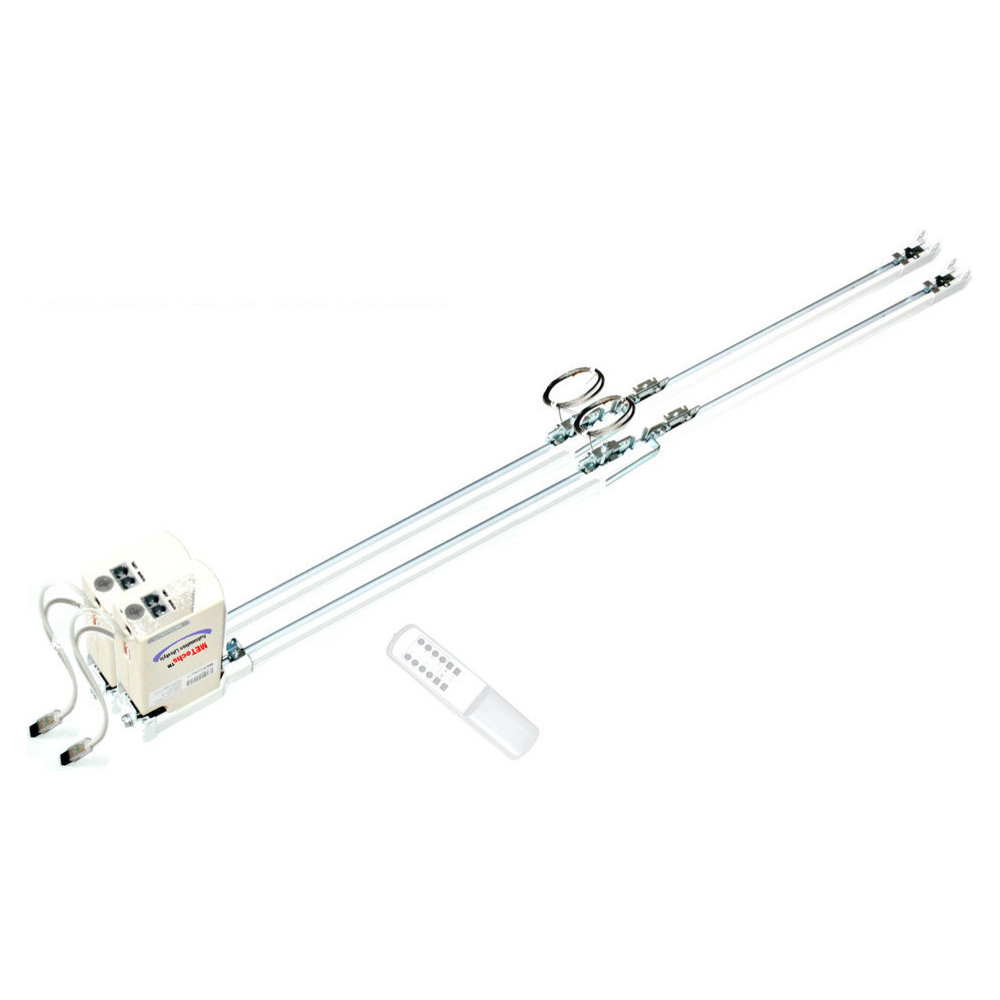

Dual Tracks are primarily used when both curtains and sheers are required in the same window. The tracks are slim and compact with a space saving design that makes it ideal for dual track applications. The dual track system is made from two single tracks, power splitter and dual mounting brackets. Curtains and sheers can be set up and operated either independently or grouped together. Each track can be set up to open/close from left to right, right to left, or center to both sides. Motor can be mounted on the left or right side. The dual track can be mounted anywhere on the ceiling, or on the wall with adjustable off wall distances between 0.25″ to 3.25″ for the inner track (usually used for sheers), and between 2.5″ to 5.5″ for the outer track (usually used for curtains). The track’s stainless steel cable drive system will last a lifetime. The motor’s built in overload protection is safe and reliable. The integrated clutch system releases the drive head when the motor is not running, so it will save power and make it easy to manually open/close curtain with just a finger. 12VDC drive engine runs quietly and can be powered by 12V battery when power is not available. Battery pack is not included. METechs Curtain motors are truly a core part of your home automation or smart home. Built in third party controlling interface makes it easy to integrate into other controllers, like METechs Smart Home Hub, Control 4, PLC, Insteon, Zigbee, Z-Wave, X10, and others. It can be controlled by remote (included), control pad (included), wall switches, METechs timers, third party controllers, and smart phones and tablets with add-on module. It can also be controlled with your existing universal learning remote, like Logitech remote, X10 remote, and other universal remotes. Order tips: METechs motorized curtain tracks are designed for a worry free purchase and flexible installation. METechs motorized curtain tracks are semi-assembled from the factory with a center open/close orientation; however, left or right orientation can be changed easily during installation. The track can be cut down to fit the measurements of your project, just order the next longer size track than you need. Mount hardware and remote control are included in the package; this is a ready to go kit! Curtains and sheers are not included. Features One remote control operates up to 8 sets of units without interfering with each other Open/close curtain by remote control, control pad, hand, smart phone with METechs module, or any other controller Automatically stops when curtain is fully open/close without position setup Stop at any preferred position by pressing stop Overload protection within 30 seconds Open/close curtain by hand any time or while power is off Simple and easy DIY installation with screwdriver Safe and reliable design with 12VDC transformer with UL or GS approval Open/close from center, left, or right Motor can be mounted at either left or right end Light, strong, and beautiful aluminum track Works with all types of curtain fabrics or draperies Slim motor is easily hidden behind curtain, it looks no different than a regular manual track The track can be cut down to any size Can be installed on wall or ceiling Ready to go kit, but curtains and sheers are not included Specifications Input voltage: 120V AC/60Hz or 230V AC/50Hz; UL, CUL approval Output voltage: 12V DC Operation power: 12W Standby power: 0.1W Torque: 18.6lbf.in (2.1N.m) Motor speed: 240RPM Average Running Noise level: 44db (quiet operation) Maximum remote distance:
