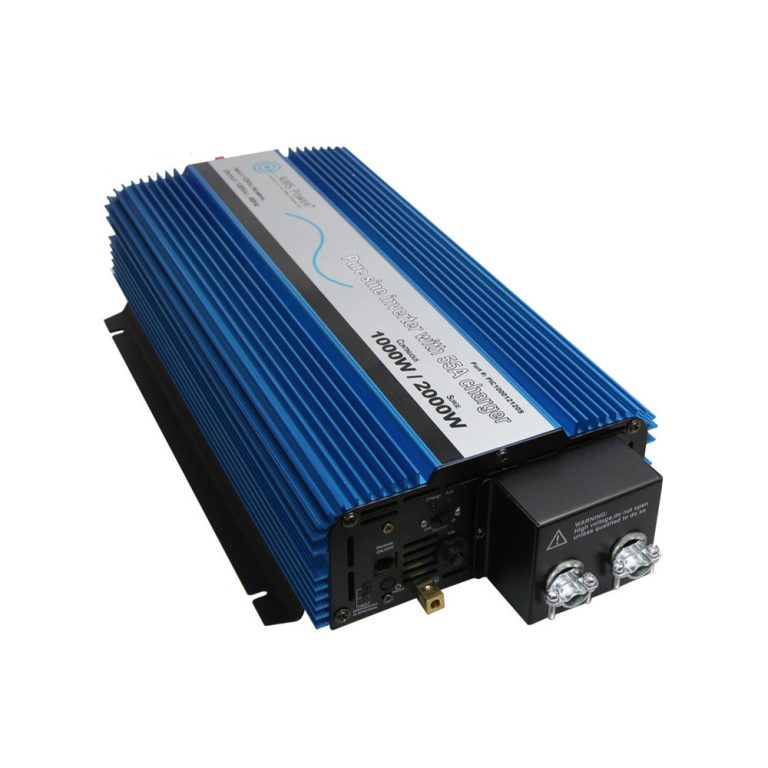

1000 Watt continuous power 2000 Watt surge Selectable 25A or 55A battery charger Built in transfer switch 12 Volt DC input Pure sine wave Conformal coated circuit board AC direct connect terminal block Efficiency: 86% – 90% Over load and short circuit protection On/off switch Dual cooling fans thermally controlled Instruction manual 1 year tech support 1 Year warranty parts and labor replacement Optional remote switch available (Part# REMOTEHF) 1000 Watt continuous power 2000 Watt surge Selectable 25A or 55A battery charger Built in transfer switch 12 Volt DC input Pure sine wave Conformal coated circuit board AC direct connect terminal block Efficiency: 86% – 90% Over load and short circuit protection On/off switch Dual cooling fans thermally controlled Instruction manual 1 year tech support 1 Year warranty parts and labor replacement Optional remote switch available (Part# REMOTEHF) Continuous output power: 1000 Watts Surge power capability (peak power): 2000 Watts Battery charge current 25A or 55A (optional) AC inverter transfer time: < 20ms DC input / operating voltage: 10-16 Volts AC input voltage range: 120 Volts AC +/- 10% Output voltage: 120 Volts AC Output frequency: 60 Hz Output wave form: pure sine wave (THD < 3%) Over voltage shutdown: 16 +/- 0.5 Volts Battery low voltage alarm: 9.8 +/- 0.3 Volts Battery low voltage shutdown: 9.5 +/- 0.5 Volts Battery overcharge protection voltage: 14.4 Volts Battery float charge voltage: 13.5 Volts Efficiency range: 86% - 90% No load current: 1.2A No load minimum operating temperature: 32 degrees Fahrenheit Unit weight: 12.1 LBS Shipping weight: 15lbs Unit dimensions: 17.25"x9.25"x4"
